Part 2: Chat WebSocket

In this part, you'll build your first real-time chat application using Chanx. You'll learn the core concepts of Chanx:

Defining type-safe message models with Pydantic
Creating WebSocket consumers
Handling incoming messages with decorators
Broadcasting messages to groups
Dynamic routing with URL parameters

By the end, you'll have a working chat room where multiple users can send and receive messages in real-time.

Starting Point

Make sure you've completed Part 1 and have Chanx properly installed. If you want to start fresh from checkpoint 1:

git checkout cp1
git reset --hard

Understanding the Chat Flow

Before we start coding, let's understand how the chat system works:

Client connects to ws://localhost:8000/ws/chat/<group_name>/ (e.g., /ws/chat/room1/)
Server adds client to the group specified in the URL
Client sends message with their name and message text
Server broadcasts the message to all other clients in the same group
All clients receive the message and display it

The beauty of Chanx is that it handles the routing, validation, and type safety automatically!

Step 1: Define Message Types

First, create a file to define your message structure. This uses Pydantic models for validation and type safety.

Create chanx_django/chat/messages.py:

from typing import Literal

from chanx.messages.base import BaseMessage
from pydantic import BaseModel


class ChatMessagePayload(BaseModel):
    message: str
    name: str


class NewChatMessage(BaseMessage):
    action: Literal["new_chat_message"] = "new_chat_message"
    payload: ChatMessagePayload

What's happening here?

ChatMessagePayload - A Pydantic model defining the data structure (message text and sender name)
NewChatMessage - The actual message that will be sent over WebSocket
- Extends BaseMessage (required for all Chanx messages)
- action field uses Literal["new_chat_message"] - this is the discriminator that Chanx uses for automatic routing
- payload contains the actual data

Note

The action field with Literal type is crucial! Chanx uses this to automatically route incoming messages to the correct handler. The action value must be unique within each consumer.

Step 2: Create the WebSocket Consumer

Now let's create the consumer that handles WebSocket connections and messages.

Create directory chat/consumers/:

mkdir -p chanx_django/chat/consumers
touch chanx_django/chat/consumers/__init__.py

Create chanx_django/chat/consumers/chat_consumer.py:

from chanx.channels.websocket import AsyncJsonWebsocketConsumer
from chanx.core.decorators import ws_handler
from chanx.messages.incoming import PingMessage
from chanx.messages.outgoing import PongMessage

from chat.messages import NewChatMessage


class ChatConsumer(AsyncJsonWebsocketConsumer):
    async def post_authentication(self) -> None:
        assert self.channel_layer
        self.group_name = self.scope["url_route"]["kwargs"]["group_name"]
        self.groups.append(self.group_name)
        await self.channel_layer.group_add(self.group_name, self.channel_name)

    @ws_handler
    async def handle_ping(self, _message: PingMessage) -> PongMessage:
        return PongMessage()

    @ws_handler(output_type=NewChatMessage)
    async def handle_new_chat_message(self, message: NewChatMessage) -> None:
        await self.broadcast_message(message, exclude_current=True)

Let's break this down:

1. Class Definition:

class ChatConsumer(AsyncJsonWebsocketConsumer):

Extends Chanx's AsyncJsonWebsocketConsumer, which provides WebSocket handling with JSON serialization.

2. Post Authentication Hook:

async def post_authentication(self) -> None:
    assert self.channel_layer
    self.group_name = self.scope["url_route"]["kwargs"]["group_name"]
    self.groups.append(self.group_name)
    await self.channel_layer.group_add(self.group_name, self.channel_name)

This method runs after a client connects:

Extracts group_name from the URL (e.g., from /ws/chat/room1/, group_name is "room1")
Adds the group to self.groups list (for automatic cleanup on disconnect)
Joins the channel layer group (enables broadcasting to all connections in this group)

3. Ping Handler:

@ws_handler
async def handle_ping(self, _message: PingMessage) -> PongMessage:
    return PongMessage()

The @ws_handler decorator registers this method as a message handler:

Automatically routes incoming messages with action: "ping" to this handler
Validates incoming message against PingMessage type
Returns PongMessage which is automatically sent back to the client

Note

PingMessage and PongMessage are built-in message types provided by Chanx for health checks.

4. Chat Message Handler:

@ws_handler(output_type=NewChatMessage)
async def handle_new_chat_message(self, message: NewChatMessage) -> None:
    await self.broadcast_message(message, exclude_current=True)

This is the core chat functionality:

@ws_handler(output_type=NewChatMessage) - Declares that this handler broadcasts NewChatMessage (used for AsyncAPI docs)
Automatically validates incoming messages against NewChatMessage type
broadcast_message() sends the message to all clients in the same group
exclude_current=True means the sender won't receive their own message back

How Message Handlers Send Messages

Understanding how messages are sent back to clients is important.

Pattern 1: Return value sends to sender only

@ws_handler
async def handle_ping(self, message: PingMessage) -> PongMessage:
    # What you return goes back to the sender only
    return PongMessage()

The handle_ping method demonstrates this - it returns PongMessage which is automatically sent to the client who sent the ping.

Pattern 2: Broadcasting to multiple users

@ws_handler(output_type=NewChatMessage)
async def handle_new_chat_message(self, message: NewChatMessage) -> None:
    # Explicitly broadcast to send to multiple users
    await self.broadcast_message(message, exclude_current=True)

The handle_new_chat_message method demonstrates this:

Return type is None (not sending directly to sender)
Use output_type parameter in @ws_handler for API documentation
Call broadcast_message() explicitly to send to all group members
exclude_current=True means the sender won't receive their own message

Note

You'll see more advanced messaging patterns, including server-to-server communication with event handlers, in Part 4.

AsyncAPI Documentation Mapping

The @ws_handler decorator generates AsyncAPI RECEIVE actions (documenting what messages clients can send). When handlers have a return type or output_type parameter, the RECEIVE action includes a reply field describing the response message.

Step 3: Create WebSocket Routing

Now we need to set up routing so WebSocket connections reach our consumer.

Create chanx_django/chat/routing.py:

from channels.routing import URLRouter
from chanx.channels.routing import path

from chat.consumers.chat_consumer import ChatConsumer

router = URLRouter(
    [
        path("<str:group_name>/", ChatConsumer.as_asgi()),
    ]
)

What this does:

Creates a URLRouter for the chat app
path("<str:group_name>/", ...) - Dynamic route that captures the group name from the URL
ChatConsumer.as_asgi() - Converts the consumer to an ASGI application

So if a client connects to /ws/chat/room1/, the group_name will be "room1".

Step 4: Enable Chat Routing

Finally, we need to include the chat routing in the main WebSocket router.

Edit chanx_django/config/routing.py and uncomment the chat line:

from channels.routing import URLRouter
from chanx.channels.routing import include, path

ws_router = URLRouter(
    [
        path("chat/", include("chat.routing")),  # Uncomment this line
        # path("assistants/", include("assistants.routing")),
        # path("system/", include("system.routing")),
    ]
)

router = URLRouter(
    [
        path("ws/", include(ws_router)),
    ]
)

Now the full WebSocket URL structure is:

/ws/chat/<group_name>/ → ChatConsumer

Testing the Chat

Let's test the chat functionality!

1. Start the Development Server:

python chanx_django/manage.py runserver

2. Open Multiple Browser Windows:

Visit http://localhost:8000/chat/ in 2-3 different browser windows or tabs.

3. Join the Same Chat Room:

In each browser window:

Enter a name (e.g., "Alice", "Bob", "Charlie")
Enter a room name (e.g., "room1")
Click "Join"

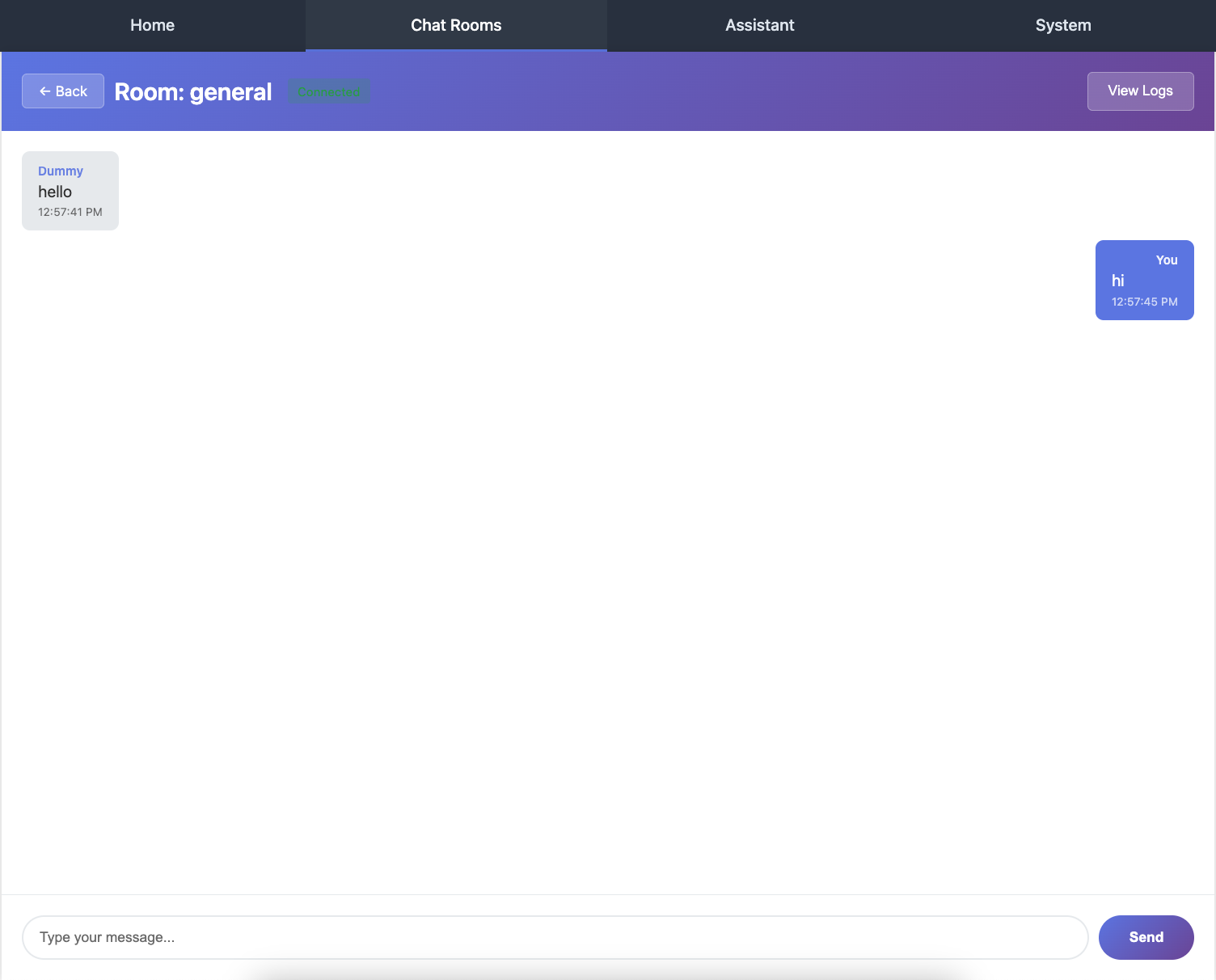

4. Send Messages:

Type messages in any window and press Enter or click Send. You should see:

The message appears in all other windows (but not the sender's window, because of exclude_current=True)
Messages are delivered in real-time
Each message shows the sender's name

5. Test Different Rooms:

Open another browser window and join a different room (e.g., "room2"). Messages in "room1" won't appear in "room2" - they're isolated by group.

6. View AsyncAPI Documentation:

Visit http://localhost:8000/asyncapi/docs/ to see your chat API automatically documented:

The NewChatMessage input/output types
The PingMessage/PongMessage handlers
Message schemas with field descriptions

Understanding the Code Flow

Let's trace what happens when Alice sends a message:

Client (Alice's browser) sends JSON:

{
  "action": "new_chat_message",
  "payload": {
    "message": "Hello everyone!",
    "name": "Alice"
  }
}

Chanx automatically:
- Receives the WebSocket message
- Looks at the action field ("new_chat_message")
- Routes it to handle_new_chat_message() based on the NewChatMessage type annotation
- Validates the message structure using Pydantic
Handler executes:
```
await self.broadcast_message(message, exclude_current=True)
```
- Broadcasts the message to all connections in the group
- Excludes Alice's connection (she already sees her message in the UI)
Other clients (Bob, Charlie) receive the message and display it

Key Concepts Review

Let's review what you've learned:

Message Types:

Messages extend BaseMessage
Use Literal type for the action field (discriminator)
Payload can be any Pydantic model
Automatic validation and type checking

Consumer:

Extend AsyncJsonWebsocketConsumer
Use post_authentication() to run code after connection
Join groups using channel_layer.group_add()

Handlers:

Use @ws_handler decorator
Chanx automatically routes based on message type
Return a message to send to the client
Use broadcast_message() to send to groups

Routing:

Use Chanx's path() and include() functions
Support dynamic URL parameters
Hierarchical routing structure

Common Patterns

Pattern 1: Access URL Parameters

group_name = self.scope["url_route"]["kwargs"]["group_name"]

Pattern 2: Broadcast to Group

await self.broadcast_message(message, exclude_current=True)

Pattern 3: Send to Current Client Only

await self.send_message(message)

Pattern 4: Return Message from Handler

@ws_handler
async def handle_something(self, message: SomeMessage) -> ResponseMessage:
    return ResponseMessage(payload=...)  # Automatically sent to client

What's Next?

Congratulations! You've built a real-time chat application with:

✅ Type-safe message handling
✅ Automatic message routing and validation
✅ Group broadcasting
✅ Dynamic URL routing
✅ Auto-generated AsyncAPI documentation

The code at this point matches the cp2 branch:

git checkout cp2

In the next part, you'll build an AI assistants chat system that demonstrates:

Server-initiated messages
More complex message structures
Integration with external services (AI APIs)
Advanced broadcasting patterns
