Introduction

What is Chanx?

Chanx is a batteries-included WebSocket framework for Django Channels, FastAPI, and ASGI-compatible applications. It provides automatic message routing, Pydantic validation, type safety, AsyncAPI documentation generation, and comprehensive testing utilities out of the box.

Built on years of real-world WebSocket development experience, Chanx provides proven patterns that help teams build maintainable, type-safe WebSocket applications with less code and better developer experience.

The Problem

Django Channels: Too Much Manual Work

Django Channels provides WebSocket support but leaves critical functionality to you:

  • Writing endless if-else chains to route messages

  • Manually parsing and validating every incoming message

  • Repeating boilerplate for authentication and broadcasting

  • No automatic API documentation

  • Limited type safety - runtime errors are common

FastAPI: Missing Core Features

FastAPI's WebSocket support is even more basic:

  • No channel layers for broadcasting

  • No group management - you track connections manually

  • No built-in message routing

  • No event system to trigger messages from other app parts

The Team Collaboration Nightmare

These gaps create serious problems when working with teams:

# Each developer implements routing differently
# Developer A:
async def receive(self, text_data):
    data = json.loads(text_data)
    if data["action"] == "chat":
        await self.handle_chat(data["message"])

# Developer B:
async def receive(self, text_data):
    msg = json.loads(text_data)
    action = msg.get("action")
    if action == "chat":
        if "payload" not in msg:
            return
        await self.process_chat(msg["payload"])

# Different patterns, no consistency, bugs everywhere

This leads to:

  • Painful code reviews: Reviewing 200+ line if-else chains is tedious and error-prone

  • Slow onboarding: New developers spend days reading code to understand what messages exist

  • No API contract: Frontend asks "what messages can I send?" - no one knows for sure

  • Broken documentation: Manually written docs are outdated within weeks

  • Debugging hell: No structured logging makes tracing errors through WebSocket flows painful

  • Fragile tests: Each developer writes different test patterns, CI breaks often

How Chanx Solves This

1. Automatic Routing & Validation - No More If-Else Hell

# Before: Manual routing nightmare
async def receive(self, text_data):
    data = json.loads(text_data)
    action = data.get("action")

    if action == "chat":
        if "message" not in data.get("payload", {}):
            await self.send(json.dumps({"error": "Missing message"}))
            return
        # Handle chat...
    elif action == "ping":
        await self.send(json.dumps({"action": "pong"}))
    # ... 50+ more elif statements

# After: Clean, automatic routing
from chanx.core.decorators import ws_handler, channel

@channel(name="chat", description="Real-time chat")
class ChatConsumer(AsyncJsonWebsocketConsumer):
    @ws_handler(output_type=ChatNotificationMessage)
    async def handle_chat(self, message: ChatMessage) -> None:
        # Automatically routed, validated, and type-safe
        await self.broadcast_message(
            ChatNotificationMessage(payload=message.payload)
        )

    @ws_handler
    async def handle_ping(self, message: PingMessage) -> PongMessage:
        return PongMessage()

2. Complete Type Safety - Catch Errors During Development

from typing import Literal
from pydantic import BaseModel
from chanx.messages.base import BaseMessage

class ChatPayload(BaseModel):
    message: str

class ChatMessage(BaseMessage):
    action: Literal["chat"] = "chat"
    payload: ChatPayload

# ✅ IDE autocomplete works
# ✅ mypy/pyright catches type errors
# ✅ Pydantic validates at runtime
# ✅ Framework auto-generates discriminated unions

3. Auto-Generated Documentation - Always Up-to-Date

@ws_handler(
    summary="Send chat message",
    description="Broadcast message to all room members",
    tags=["chat"]
)
async def handle_chat(self, message: ChatMessage) -> None:
    # AsyncAPI 3.0 spec generated automatically
    # Interactive docs at /asyncapi/
    # Frontend knows exactly what to send

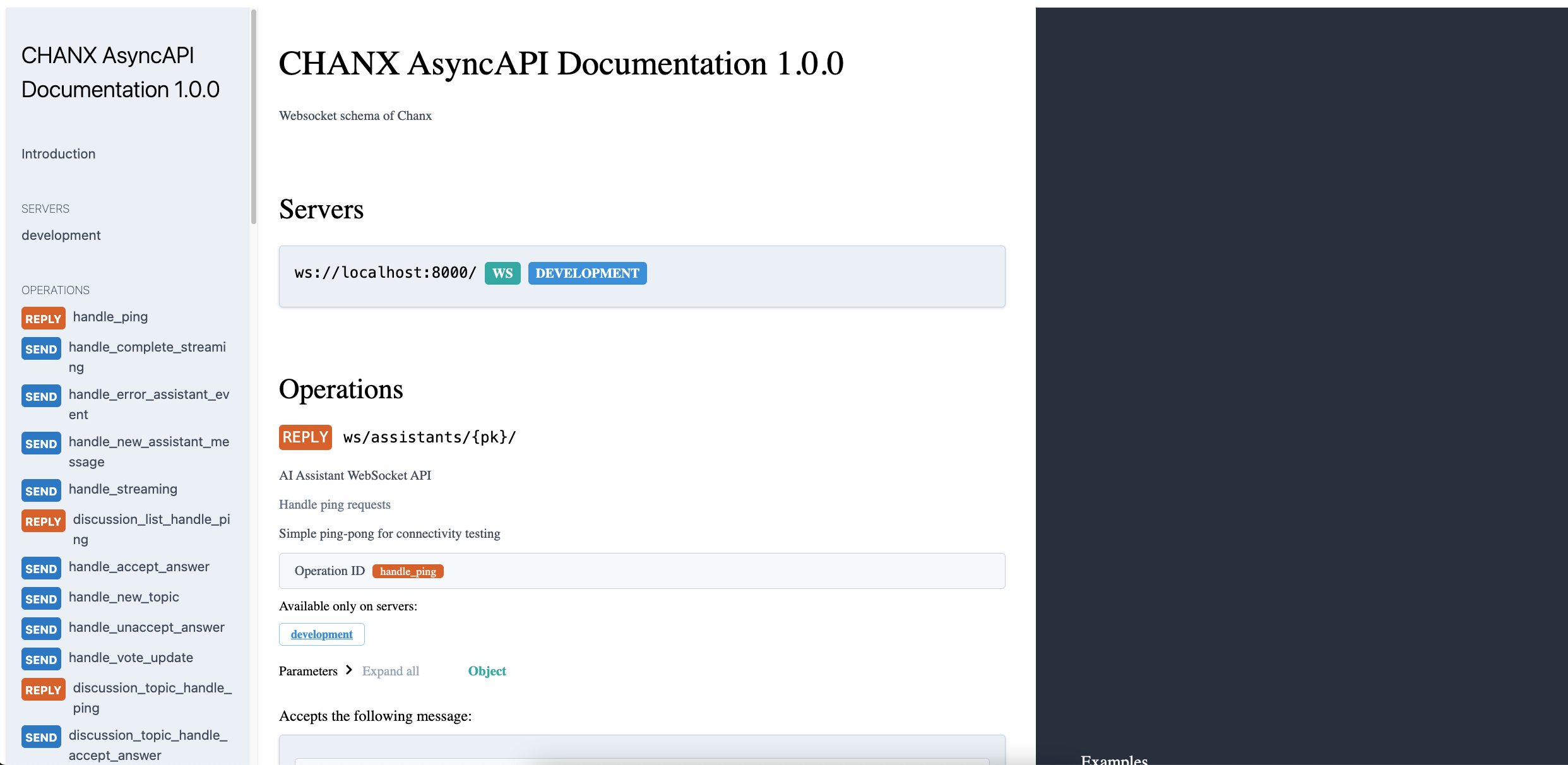

AsyncAPI Documentation automatically generated from Chanx decorators

4. Multi-Framework Support - Works Everywhere

# Django Channels - full support
from chanx.channels.websocket import AsyncJsonWebsocketConsumer

# FastAPI - adds channel layers, broadcasting, groups
from chanx.fast_channels.websocket import AsyncJsonWebsocketConsumer

# Same decorators, same API, same features

5. Event Broadcasting - Trigger Messages from Anywhere

# From Django view
def create_post(request):
    post = Post.objects.create(...)
    ChatConsumer.broadcast_event_sync(
        NewPostEvent(payload={"title": post.title}),
        groups=["feed_updates"]
    )
    return JsonResponse({"status": "created"})

# From Celery task
@celery.task
def process_payment(payment_id):
    payment = process_payment_logic(payment_id)
    PaymentConsumer.send_event_sync(
        PaymentCompleteEvent(payload=payment.to_dict()),
        channel_name=f"user_{payment.user_id}"
    )

6. Comprehensive Testing - Fast, Reliable, Easy

# FastAPI/ASGI
from chanx.fast_channels.testing import WebsocketCommunicator

async def test_chat():
    async with WebsocketCommunicator(
        app, "/ws/chat", consumer=ChatConsumer
    ) as comm:
        await comm.send_message(ChatMessage(payload="Hello"))
        messages = await comm.receive_all_messages(
            stop_action=GROUP_ACTION_COMPLETE
        )
        assert messages[0].action == "chat_notification"

# Django Channels
from chanx.channels.testing import WebsocketTestCase

class TestChat(WebsocketTestCase):
    consumer = ChatConsumer

    async def test_broadcast(self):
        await self.auth_communicator.connect()
        await ChatConsumer.broadcast_event(
            StreamingEvent(payload=data),
            groups=[f"user_{self.user.pk}"]
        )
        messages = await self.auth_communicator.receive_all_messages(
            stop_action=EVENT_ACTION_COMPLETE
        )

What You Get

Better Developer Experience

  • Write less code - decorators replace hundreds of lines of routing

  • IDE autocomplete and type checking - catch errors before runtime

  • Consistent patterns across the team - everyone uses the same decorators

  • Fast onboarding - new developers see @ws_handler and immediately understand

Better App Flow

  • Automatic message routing based on action field discriminator

  • Type-safe validation with Pydantic - invalid messages rejected automatically

  • Event broadcasting from anywhere - HTTP views, Celery tasks, management scripts

  • Structured logging - trace every message through the system

Better Documentation

  • Auto-generated AsyncAPI 3.0 specs from your code

  • Interactive documentation at /asyncapi/

  • Always up-to-date - docs generated from actual implementation

  • Frontend knows exactly what messages to send

Better Testing

  • Framework-specific test utilities

  • Type-safe message sending/receiving

  • receive_all_messages() with stop actions for reliable testing

  • Comprehensive test coverage becomes easy

Safer Production

  • Static type checking with mypy/pyright

  • Runtime validation with Pydantic

  • Structured error logging for easier debugging

  • Proven patterns from years of real-world use

Who Should Use Chanx?

Chanx is ideal for:

  • Teams building WebSocket features who want consistent patterns and less code review pain

  • Python developers building real-time features across any ASGI framework

  • Django projects wanting to eliminate WebSocket boilerplate and maintain REST API consistency

  • FastAPI projects needing robust WebSocket capabilities with channel layers, broadcasting, and automatic documentation

  • Full-stack applications requiring seamless event broadcasting between HTTP and WebSocket layers

  • Type-safety advocates who want comprehensive mypy/pyright support for WebSocket development

  • API-first teams who need automatic AsyncAPI documentation generation
