Introduction

What is Chanx?

Chanx is a comprehensive toolkit for building real-time WebSocket applications across Django Channels, FastAPI, and any ASGI-compatible framework. It eliminates the complexity of manual message routing, provides automatic AsyncAPI documentation generation, and offers decorator-based handlers that make WebSocket development as straightforward as building REST APIs.

Chanx transforms WebSocket development by replacing verbose if/else message routing with clean decorators, automatically generating type-safe message handling, and providing seamless event broadcasting across your entire application stack.

Why use Chanx?

Problem: WebSocket development is tedious and error-prone

Building WebSocket applications traditionally requires writing verbose message routing code, manually handling validation, and maintaining separate documentation. This leads to:

  • Massive if/else or switch statements for message routing

  • Boilerplate authentication and permission handling across frameworks

  • Manual message validation with inconsistent error handling

  • No automatic documentation generation

  • Complex event broadcasting between different parts of your application

Solution: Chanx provides decorator-based automation

Chanx eliminates these pain points with a unified framework that provides:

  1. No More If/Else Hell: Decorator-based automatic message routing eliminates verbose switch statements

# Before: Manual routing nightmare
async def receive_json(self, content):
    action = content.get("action")
    if action == "chat":
        await self.handle_chat(content)
    elif action == "ping":
        await self.handle_ping(content)
    elif action == "join_room":
        await self.handle_join_room(content)
    # ... dozens more elif statements

# After: Clean decorator-based routing
from chanx.core.decorators import ws_handler, channel

@channel(name="chat", description="Real-time chat")
class ChatConsumer(AsyncJsonWebsocketConsumer):
    @ws_handler(summary="Handle chat messages")
    async def handle_chat(self, message: ChatMessage) -> None:
        await self.broadcast_message(...)

    @ws_handler(summary="Handle ping requests")
    async def handle_ping(self, message: PingMessage) -> PongMessage:
        return PongMessage()

  1. Automatic AsyncAPI Documentation: Generate comprehensive API docs from your decorated handlers

# Your decorators automatically generate AsyncAPI 3.0 specs
@ws_handler(
    summary="Send chat message",
    description="Broadcast message to all room members",
    tags=["chat", "messaging"]
)
async def handle_chat(self, message: ChatMessage) -> None:
    # Implementation generates documentation automatically

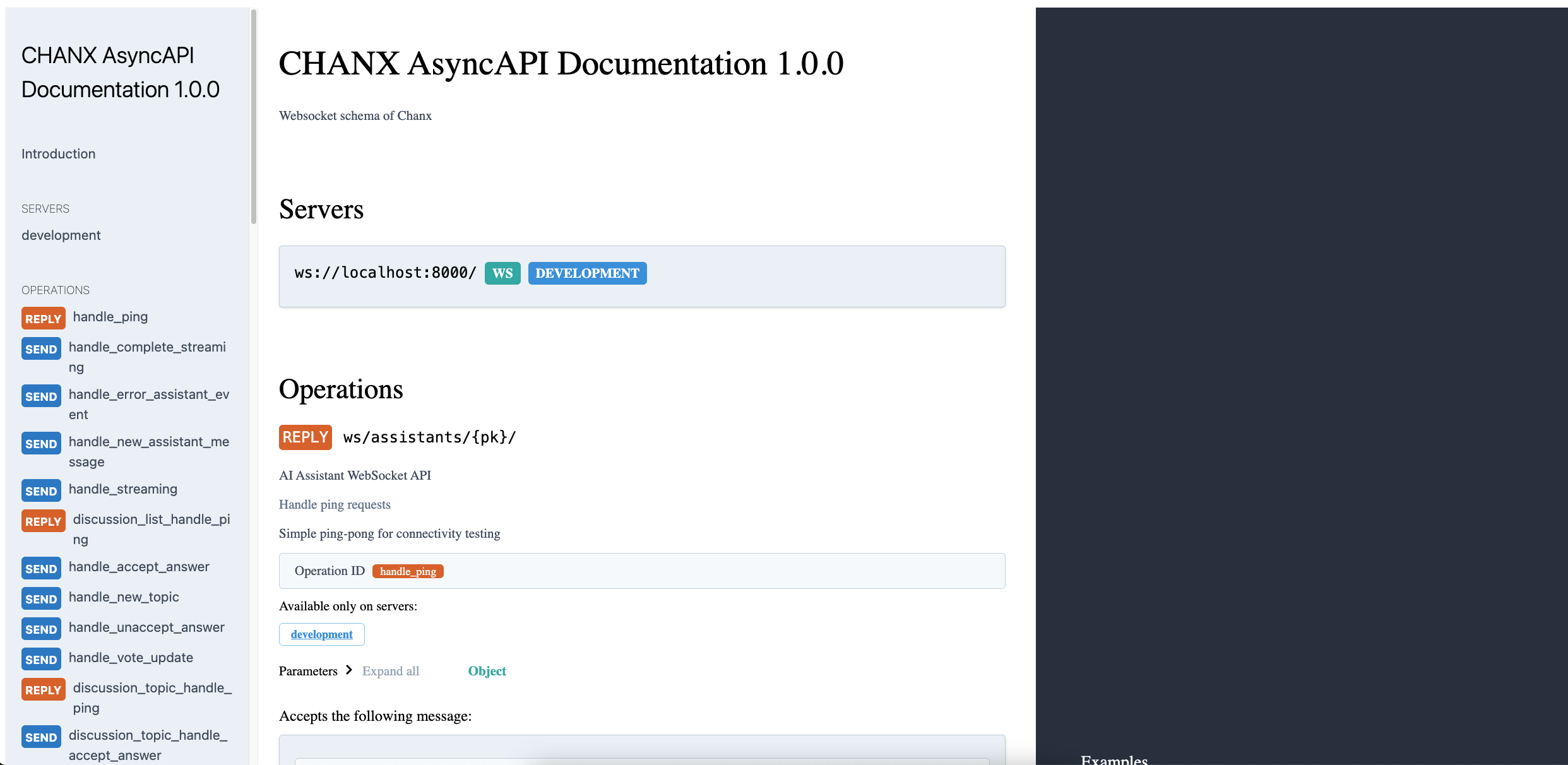

AsyncAPI Documentation automatically generated from Chanx decorators

  1. Send Events from Anywhere: Seamlessly broadcast events from HTTP views, background tasks, or management scripts

# From a Django view
def create_post(request):
    post = Post.objects.create(...)
    # Instantly notify WebSocket clients
    ChatConsumer.broadcast_event_sync(
        NewPostEvent(payload={"title": post.title}),
        groups=["feed_updates"]
    )
    return JsonResponse({"status": "created"})

# From a Celery task
@celery.task
def process_payment(payment_id):
    payment = process_payment_logic(payment_id)
    # Notify user's WebSocket connection
    PaymentConsumer.send_event_sync(
        PaymentCompleteEvent(payload=payment.to_dict()),
        channel_name=f"user_{payment.user_id}"
    )

  1. Multi-Framework Support: Automatic framework detection with consistent API across Django Channels, FastAPI, and any ASGI framework

# Same import works everywhere - auto-detects framework
from chanx.core.websocket import AsyncJsonWebsocketConsumer

# Framework detection via environment variables:
# - Django: DJANGO_SETTINGS_MODULE detected automatically
# - Other frameworks: Set CHANX_USE_DJANGO=false or leave unset

  1. Type-Safe Messaging: Automatic Pydantic validation with discriminated unions and full IDE support

from chanx.messages.base import BaseMessage
from typing import Literal

class ChatMessage(BaseMessage):
    action: Literal["chat"] = "chat"
    payload: ChatPayload

class PingMessage(BaseMessage):
    action: Literal["ping"] = "ping"
    payload: None = None

# Framework automatically builds discriminated unions and routing
@channel(name="chat")
class ChatConsumer(AsyncJsonWebsocketConsumer):
    # No manual routing needed - decorators handle everything!

  1. Enhanced Testing: Framework-specific testing with improved message handling

# FastAPI and other ASGI frameworks
from chanx.testing import WebsocketCommunicator

@pytest.mark.asyncio
async def test_streaming_response():
    async with WebsocketCommunicator(app, "/ws/chat", consumer=ChatConsumer) as comm:
        await comm.send_message(ChatMessage(payload="Hello"))

        # receive_all_messages waits for stop_action - faster & more reliable
        messages = await comm.receive_all_messages(stop_action=GROUP_ACTION_COMPLETE)

        assert messages[0].action == "chat_notification"

# Django Channels (enhanced)
from chanx.ext.channels.testing import WebsocketTestCase

class TestChat(WebsocketTestCase):
    consumer = ChatConsumer

    async def test_event_handling(self):
        await self.auth_communicator.connect()

        # Send events from anywhere in your application
        await ChatConsumer.broadcast_event(
            StreamingEvent(payload=streaming_data),
            [f"user_{self.user.pk}_chat"]
        )

        # Enhanced receive with stop_action handling
        messages = await self.auth_communicator.receive_all_messages(
            stop_action=EVENT_ACTION_COMPLETE
        )

Key Benefits

  • Eliminate If/Else Hell: Decorator-based routing replaces verbose manual message handling

  • Automatic Documentation: AsyncAPI 3.0 specs generated directly from your code

  • Event Broadcasting Made Easy: Send events from anywhere in your application stack

  • Multi-Framework Consistency: Same API works across Django, FastAPI, and ASGI frameworks

  • Type Safety: Full mypy/pyright support with automatic discriminated unions

  • Zero Configuration Routing: Message types automatically routed to the correct handlers

  • Production Ready: Battle-tested patterns with comprehensive error handling

Architecture Overview

Chanx is built around decorator-driven automation:

  • Decorator System: @ws_handler, @event_handler, and @channel decorators for automatic routing

  • Message Registry: Centralized type discovery and discriminated union generation

  • AsyncAPI Generator: Automatic OpenAPI-style documentation from decorated handlers

  • Multi-Framework Adapters: Unified API across Django Channels, FastAPI, and ASGI frameworks

  • Event Broadcasting: Type-safe event sending from HTTP views, tasks, scripts, and consumers

  • Authentication Integration: Framework-specific authenticators (DRF for Django, custom for others)

  • Enhanced Testing Framework: Improved Django Channels testing with faster, more reliable message handling via receive_all_message with stop actions

The architecture eliminates manual configuration by automatically discovering message types, building routing tables, and generating documentation from your decorated methods.

Who should use Chanx?

Chanx is ideal for:

  • Python developers building real-time features across any ASGI framework

  • Django teams who want to eliminate WebSocket boilerplate and maintain REST API consistency

  • FastAPI projects needing robust WebSocket capabilities with automatic documentation

  • Full-stack applications requiring seamless event broadcasting between HTTP and WebSocket layers

  • Type-safety advocates who want comprehensive mypy/pyright support for WebSocket development

  • API-first teams who need automatic AsyncAPI documentation generation

  • DevOps-friendly projects seeking consistent patterns across multiple Python web frameworks

Next Steps
